PAYGO solar home system
Solar Home System H Series

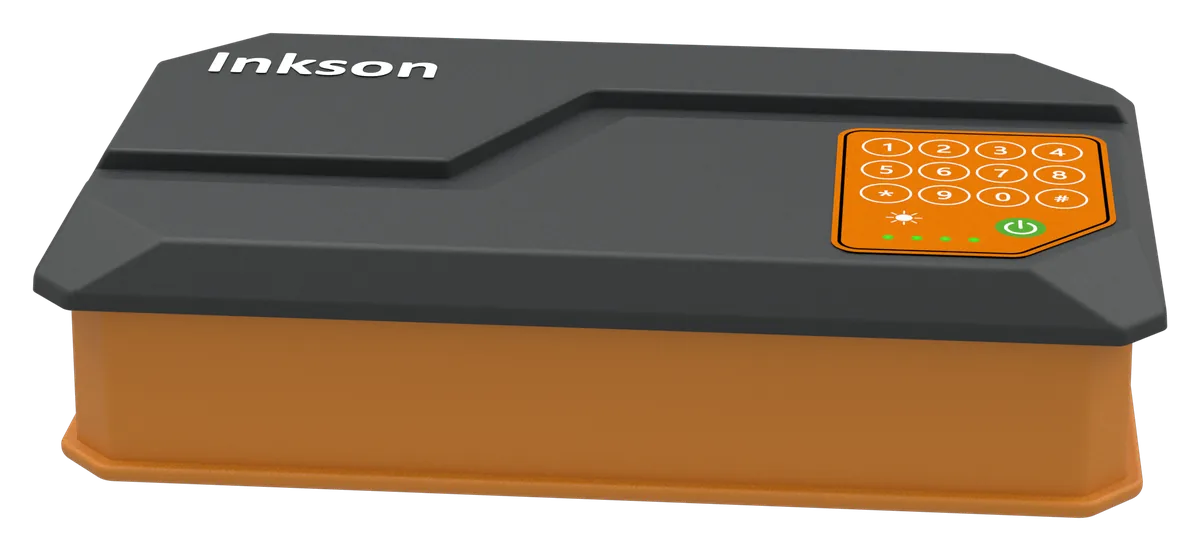

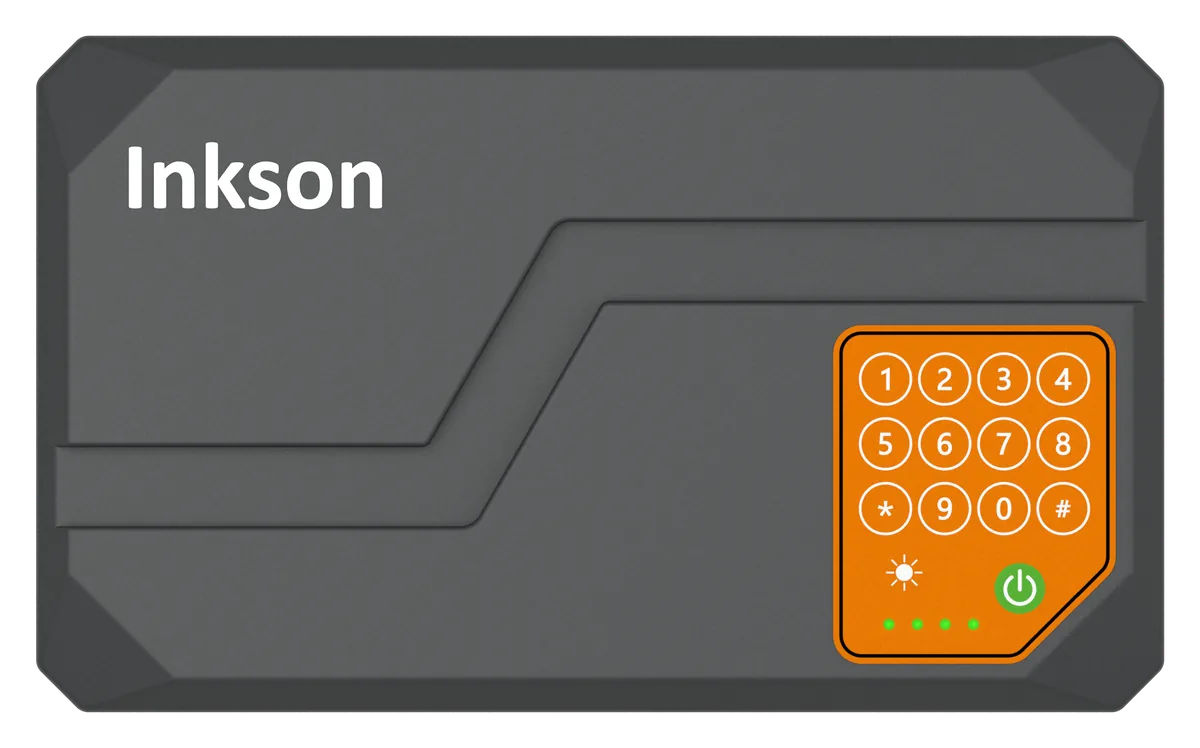

The H Series is a PAYGO solar home system by MOSON. It comes with a solar panel and two LED bulbs, stores energy in a LiFePO4 battery, powers 12 V DC appliances through three sockets, charges phones over USB, and switches on when the customer types a valid payment code on its keypad.
- Battery
- 19.2–76.8 Wh, LiFePO4
- Solar panel
- 6–30 W, included
- Lighting
- Up to 32.6 h with 2 bulbs
- Outputs
- 3 × 12 V DC, 2 × USB 5 V
- Control
- 12-key PAYGO keypad
- Warranty
- 3 years
Models
Four battery sizes, one housing
Every H Series model uses the same unit, keypad and outputs. The models differ in battery capacity and the solar panel that comes with them.
| Specification | H-20 | H-40 | H-60 | H-80 |
|---|---|---|---|---|
| Battery capacity | 19.2 Wh | 38.4 Wh | 57.6 Wh | 76.8 Wh |
| Solar panel (included) | 6 W, 6 V | 15 W, 6 V | 20 W, 6 V | 30 W, 18 V |
| Panel size | 271 × 180 × 14 mm | 350 × 350 × 15 mm | 350 × 450 × 15 mm | 480 × 390 × 17 mm |
| DC output, per socket | 12 V, 1 A | 12 V, 1 A | 12 V, 2 A | 12 V, 2 A |
| USB output, max | 5 V, 1.2 A | 5 V, 1.2 A | 5 V, 2 A | 5 V, 2 A |
| Charging time | 3.8 h | 3 h | 3.4 h | 3 h |
| Lighting time, 2 bulbs | 8.2 h | 16.3 h | 24.5 h | 32.6 h |
| Net weight, full set | 1.6 kg | 2.3 kg | 3.0 kg | 4.5 kg |
| Container loading, 20GP / 40HQ | 3,260 / 7,600 pcs | 2,600 / 6,050 pcs | 2,450 / 5,750 pcs | 2,300 / 5,350 pcs |
Charging and lighting times are MOSON test values. Actual times depend on sunlight, temperature and use.
Inputs and outputs
Every connection on one side

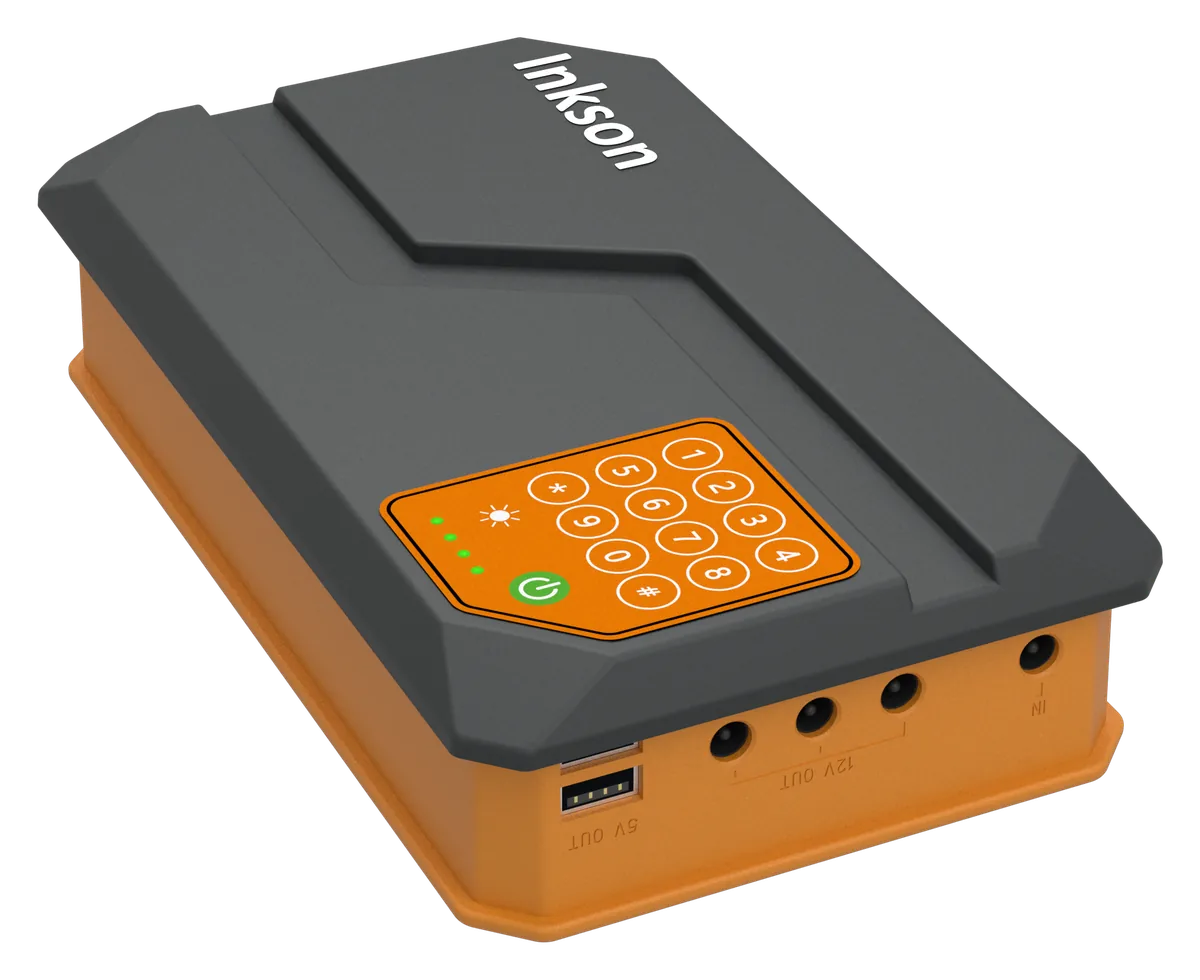

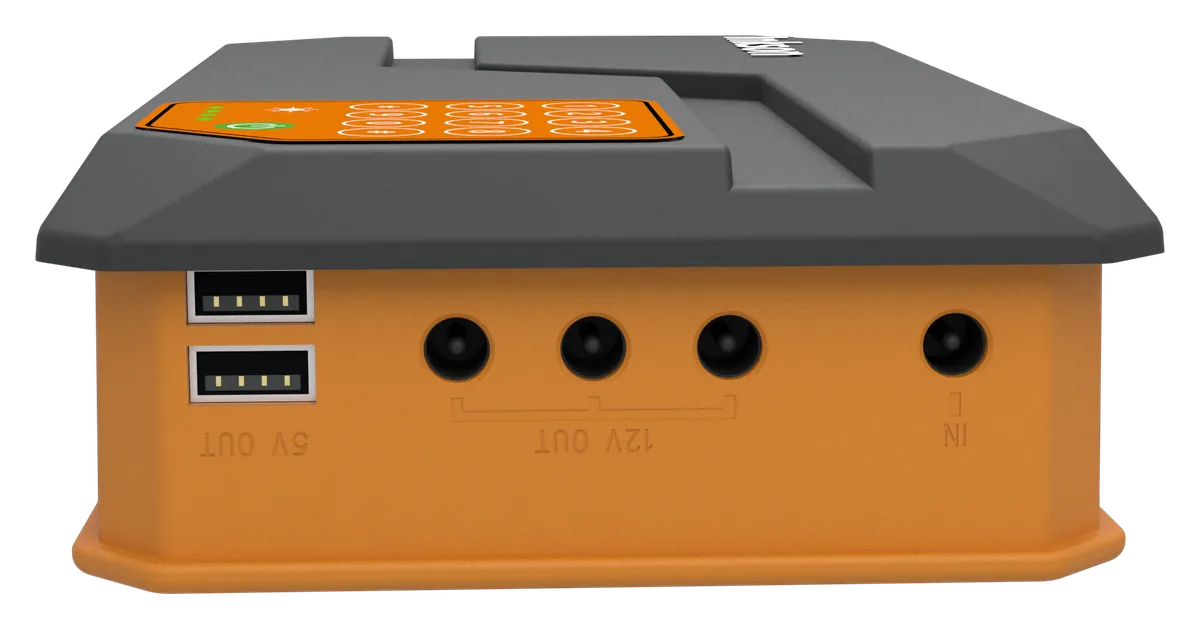

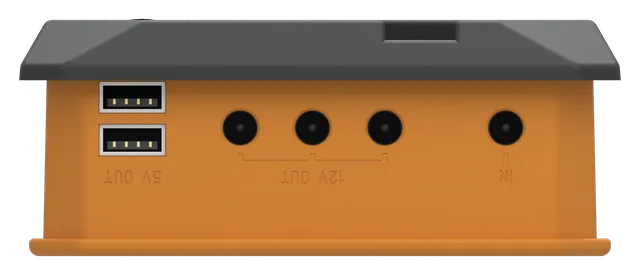

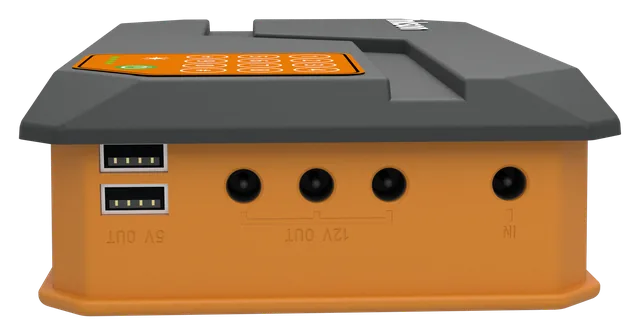

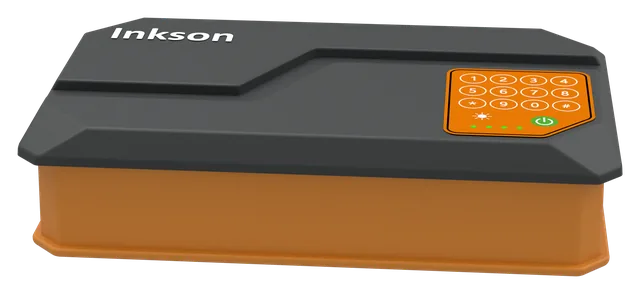

The solar input and all outputs sit together on the right side of the housing, so every cable leaves from one side when the unit hangs on a wall.
2 × USB5 V out
3 × DC12 V out
SolarInput

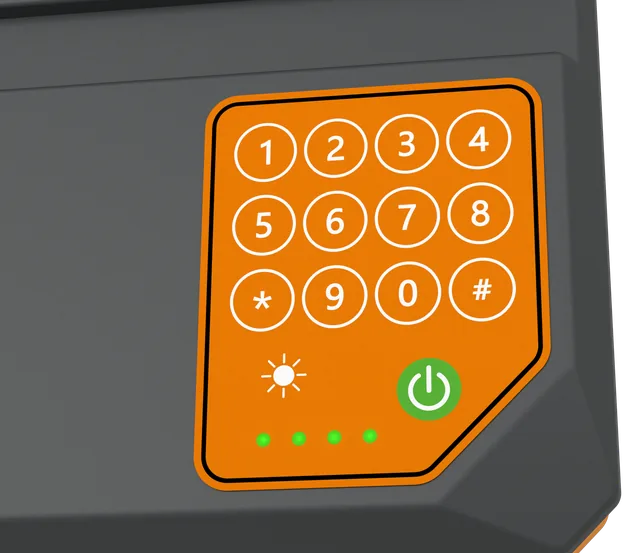

PAYGO keypad
Payment codes go straight in on the front

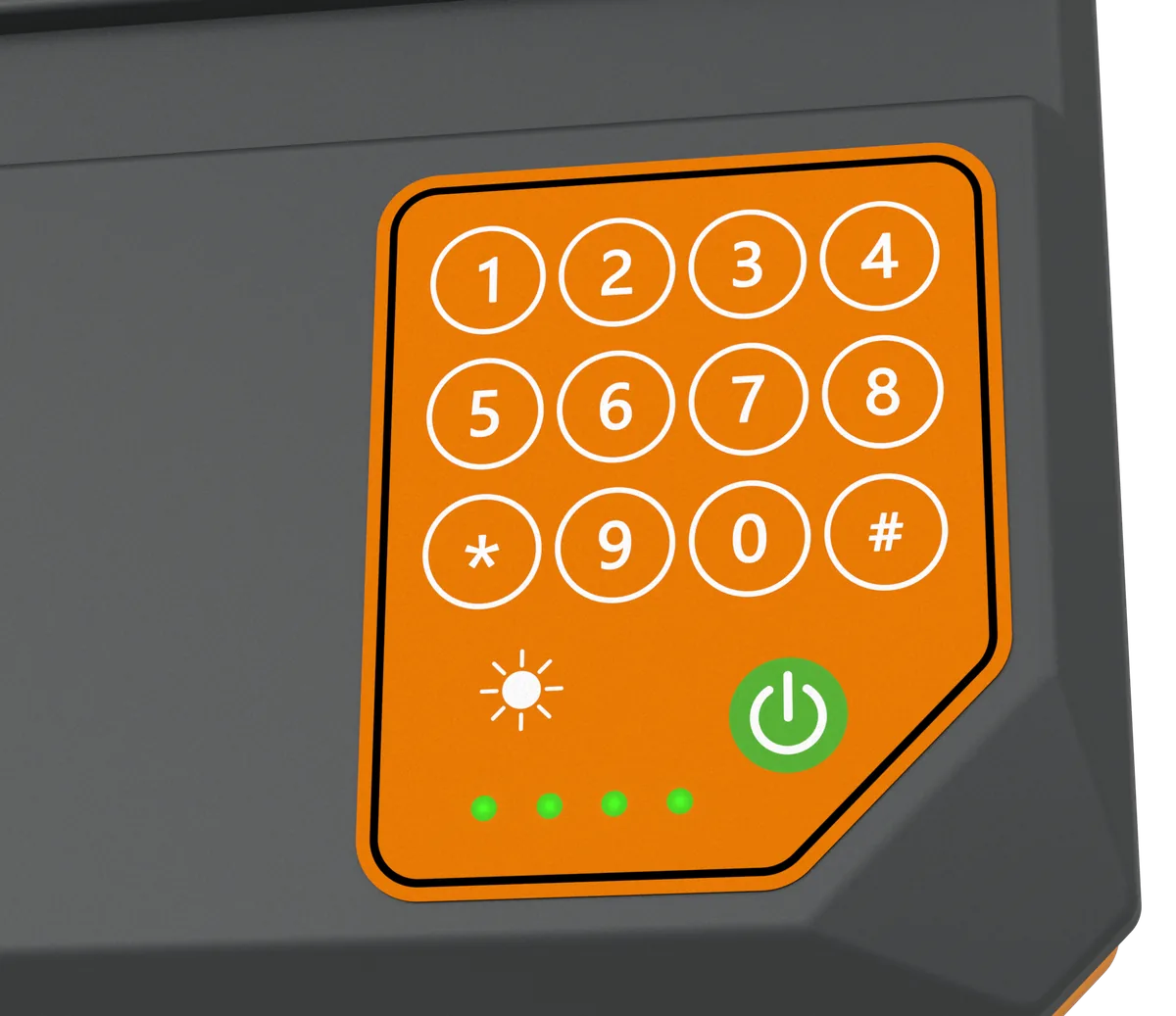

The front label carries a 12-key keypad (0–9, * and #), a power button, a solar charging indicator and four battery status LEDs. After each payment the customer types the code they received, and the system unlocks for the period paid.
The keypad works with the MOSON PAYGO platform, built on the OpenPAYGO Token standard. See how the platform works.
Specifications
| Unit | |
|---|---|

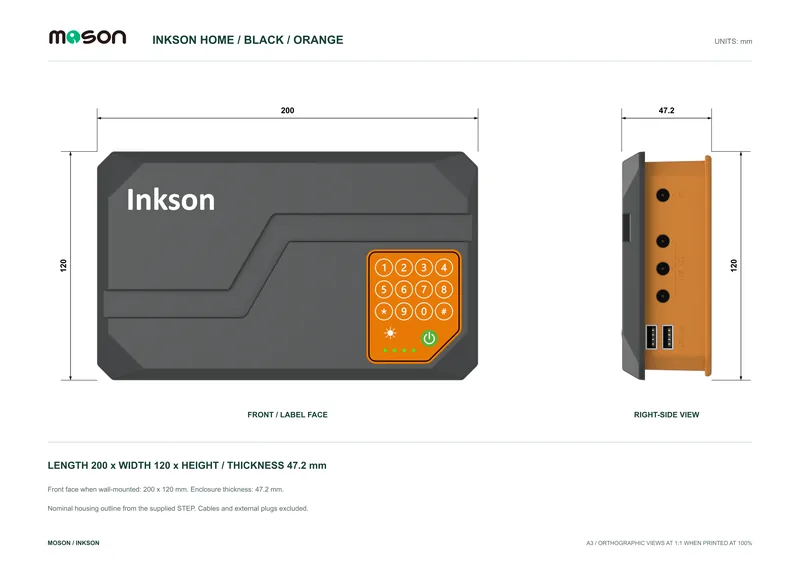

| Dimensions (L × W × H) | 200 × 120 × 47.2 mm |
| Wall mounting | 2 holes, 140 mm apart |
| Colour | Charcoal top, orange base |
| Power | |
| Battery type | LiFePO4 (lithium iron phosphate) |
| Battery capacity | 19.2 / 38.4 / 57.6 / 76.8 Wh |
| Solar input | DC5525 socket, 5 m panel cable |
| DC outputs | 3 × 12 V DC sockets |
| USB outputs | 2 × USB-A, 5 V |
| Output type | DC only |
| Control | |
| PAYGO | 12-key keypad (0–9, *, #), OpenPAYGO Token |
| Indicators | Solar charging indicator, 4-LED battery status, power button |
| Lights | |
| Included bulbs | 2 × 1.3 W LED, 130 lm each |
| Bulb features | Dimmable, built-in switch, 2.75 m cable |
| Supply | |
| In the box | Unit, solar panel, 2 LED bulbs, 5-in-1 USB cable, 2 wall screws |
| Colour box (L × W × H) | 331 × 92 × 256 mm |
| Master carton | 345 × 475 × 280 mm, 5 pcs |
| Warranty | 3 years |
H Series questions
Which H Series model should I choose?
Choose by how many hours of power you need each night. With the two included bulbs, a full battery lights a home for about 8 hours on the H-20, 16 hours on the H-40, 24 hours on the H-60 and 32 hours on the H-80. Running a fan, TV or phone charger as well shortens these times.
What battery does the H Series use?
A LiFePO4 (lithium iron phosphate) battery of 19.2 Wh, 38.4 Wh, 57.6 Wh or 76.8 Wh, depending on the model. Every model has a 3-year warranty.
What comes in the box?
The H Series unit, a solar panel with a 5 m cable, two 1.3 W LED bulbs with 2.75 m cables and built-in switches, a 5-in-1 USB phone charging cable and two wall-mounting screws.
What can I connect to the H Series?
12 V DC appliances such as LED lights, fans and TVs through the three DC sockets, and phones or other USB devices through the USB ports.
How does the PAYGO keypad work?
After each payment the customer receives a numeric code. Typing it on the keypad unlocks the system for the period paid. The device needs no mobile signal or internet. Read how PAYGO solar works.
Where can I buy the H Series?
We sell to households and distributors across Africa. Contact us on WhatsApp for prices and availability in your country.
Do you supply distributors?
Yes. We supply distributors and project buyers directly from our factory in Shenzhen. See distributor information.
Get H Series prices
Tell us your country, the model and the quantity you need. We send the spec sheet and price list on WhatsApp or email.
